7. Retrieval

The basic RAG pipeline involves embedding a user query, retrieving relevant documents to the query, and passing the documents to an LLM for generation of an answer grounded in the retrieved context as we seen through out this tutorial series.

%load_ext dotenv
%dotenv secrets/secrets.env

When retrieving documents we usually rerank them based on a certain algorithm like Reciprocal Rank Fusion (RRF). Instead of providing all the documents retrieved as the context, reranking allows us to provide only top-k relevant documents saving the limited context length of most affordable LLMs.

In this section we implement two reranking-based retrieval methods, namely,

• Reciprocal Rank Fusion (RRF)

• Cohere Reranking

from langchain_community.document_loaders import PyPDFLoader, DirectoryLoader
from langchain.text_splitter import RecursiveCharacterTextSplitter
from langchain import hub
from langchain_community.vectorstores import Chroma
from langchain_core.output_parsers import StrOutputParser
from langchain_core.runnables import RunnablePassthrough
from langchain_openai import ChatOpenAI, OpenAIEmbeddings
from typing import List
from langchain.load import loads, dumps

loader = DirectoryLoader('data/',glob="*.pdf",loader_cls=PyPDFLoader)
documents = loader.load()

# Split text into chunks

text_splitter  = RecursiveCharacterTextSplitter(chunk_size=500,chunk_overlap=20)
text_chunks = text_splitter.split_documents(documents)

vectorstore = Chroma.from_documents(documents=text_chunks,
                                    embedding=OpenAIEmbeddings(),
                                    persist_directory="data/vectorstore")
vectorstore.persist()
retriever = vectorstore.as_retriever(search_kwargs={'k':5})

/Users/sakunaharinda/Documents/Repositories/ragatouille/venv/lib/python3.12/site-packages/langchain_core/_api/deprecation.py:119: LangChainDeprecationWarning: Since Chroma 0.4.x the manual persistence method is no longer supported as docs are automatically persisted.
  warn_deprecated(

7.1. Reciprocal Rank Fusion

def rrf(results: List[List], k=60):
    # Initialize a dictionary to hold fused scores for each unique document
    fused_scores = {}

    # Iterate through each list of ranked documents
    for docs in results:
        # Iterate through each document in the list, with its rank (position in the list)
        for rank, doc in enumerate(docs):
            # Convert the document to a string format to use as a key (assumes documents can be serialized to JSON)
            doc_str = dumps(doc)
            # If the document is not yet in the fused_scores dictionary, add it with an initial score of 0
            if doc_str not in fused_scores:
                fused_scores[doc_str] = 0
            # Retrieve the current score of the document, if any
            previous_score = fused_scores[doc_str]
            # Update the score of the document using the RRF formula: 1 / (rank + k)
            fused_scores[doc_str] += 1 / (rank + k)

    # Sort the documents based on their fused scores in descending order to get the final reranked results
    reranked_results = [
        (loads(doc), score)
        for doc, score in sorted(fused_scores.items(), key=lambda x: x[1], reverse=True)
    ]

    # Return the reranked results as a list of tuples, each containing the document and its fused score
    return reranked_results

from langchain.prompts import ChatPromptTemplate

question = "What is QLoRA?"

prompt = ChatPromptTemplate.from_template(
    """
    You are an intelligent assistant. Your task is to generate 4 questions based on the provided question in different wording and different perspectives to retrieve relevant documents from a vector database. By generating multiple perspectives on the user question, your goal is to help the user overcome some of the limitations of the distance-based similarity search. Provide these alternative questions separated by newlines. Original question: {question}
    """
)

generate_queries = (
    {"question": RunnablePassthrough()}
    | prompt
    | ChatOpenAI(model='gpt-4', temperature=0.7)
    | StrOutputParser()
    | (lambda x: x.split("\n"))
)


fusion_retrieval_chain = (
    {'question': RunnablePassthrough()}
    | generate_queries
    | retriever.map()
    | rrf
)

fusion_retrieval_chain.invoke(question)

/Users/sakunaharinda/Documents/Repositories/ragatouille/venv/lib/python3.12/site-packages/langchain_core/_api/beta_decorator.py:87: LangChainBetaWarning: The function `loads` is in beta. It is actively being worked on, so the API may change.
  warn_beta(

[(Document(page_content='Quantization to reduce the average memory footprint by quantizing the quantization\nconstants, and (c) Paged Optimizers to manage memory spikes. We use QLORA\nto finetune more than 1,000 models, providing a detailed analysis of instruction\nfollowing and chatbot performance across 8 instruction datasets, multiple model\ntypes (LLaMA, T5), and model scales that would be infeasible to run with regular\nfinetuning (e.g. 33B and 65B parameter models). Our results show that QLoRA', metadata={'page': 0, 'source': 'data/QLoRA.pdf'}),
  0.21081147226209362),
 (Document(page_content='A QLoRA vs Standard Finetuning Experimental Setup Details\nA.1 Hyperparameters for QL ORA\nWe do a hyperparameter search for LoRA over the following variables: LoRA dropout { 0.0, 0.05,\n0.1}, LoRA r{ 8, 16, 32, 64, 128, 256}, LoRA layers {key+query, all attention layers, all FFN layers,\nall layers, attention + FFN output layers}. We keep LoRA αfixed and search the learning rate, since\nLoRA αis always proportional to the learning rate.', metadata={'page': 21, 'source': 'data/QLoRA.pdf'}),
  0.06506215742069787),
 (Document(page_content='technology. QLORAcan be seen as an equalizing factor that helps to close the resource gap between\nlarge corporations and small teams with consumer GPUs.\nAnother potential source of impact is deployment to mobile phones. We believe our QLORAmethod\nmight enable the critical milestone of enabling the finetuning of LLMs on phones and other low\nresource settings. While 7B models were shown to be able to be run on phones before, QLORAis', metadata={'page': 15, 'source': 'data/QLoRA.pdf'}),
  0.03125),
 (Document(page_content='LoRA, an efficient adaptation strategy that neither introduces inference latency nor reduces input\nsequence length while retaining high model quality. Importantly, it allows for quick task-switching\nwhen deployed as a service by sharing the vast majority of the model parameters. While we focused\non Transformer language models, the proposed principles are generally applicable to any neural\nnetworks with dense layers.', metadata={'page': 11, 'source': 'data/LoRA.pdf'}),
  0.015625)]

def format_context(documents: List):
    return "\n\n".join([doc[0].page_content for doc in documents])


prompt = ChatPromptTemplate.from_template(
    """
    Asnwer the given question using the provided context.\n\nContext: {context}\n\nQuestion: {question}
    """
)

rag_with_rrf_chain = (
    {'context': fusion_retrieval_chain | format_context, 'question': RunnablePassthrough()}
    | prompt
    | ChatOpenAI(model='gpt-4', temperature=0)
    | StrOutputParser()
)

rag_with_rrf_chain.invoke(question)

'QLoRA is an efficient adaptation strategy that reduces the average memory footprint by quantizing the quantization constants and managing memory spikes. It is used to finetune more than 1,000 models and provides a detailed analysis of instruction following and chatbot performance. QLoRA does not introduce inference latency or reduce input sequence length while retaining high model quality. It allows for quick task-switching when deployed as a service by sharing the vast majority of the model parameters. It is generally applicable to any neural networks with dense layers.'

7.2. Cohere Reranking

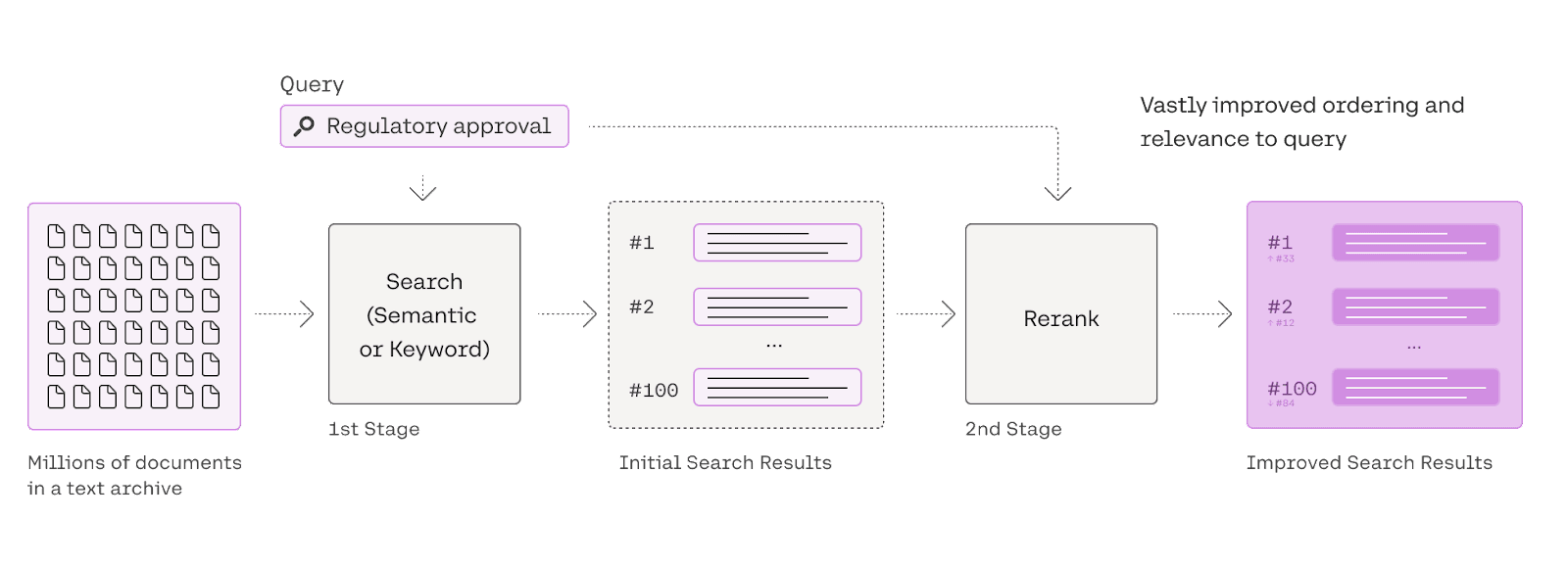

Cohere Reranking process

Cohere uses a tranformer model to rerank relevant documents per a user’s query. This means that companies can retain an existing keyword-based (also called “lexical”) or semantic search system for the first-stage retrieval and integrate the Rerank endpoint in the second stage re-ranking. Since this technique reranks the documents based on their content instead of their frquecy in the retrieved document set (as seen in RRF), this is much more accurate.

See also

Their blog post explains this process in detail.

To begin with, we define the Cohere Reranker with the model rerank-english-v2.0 to retrieve top 3 documents for the given question. Then we pass the reranking model together with our base retriever that provides the initial document set to rank.

Note

Instead of immediately returning retrieved documents as-is, ContextualCompressionRetriever compresses them using the context of the given query, so that only the relevant information is returned. “Compressing” here refers to both compressing the contents of an individual document and filtering out documents wholesale. Refer the documentation for more information.

from langchain_community.llms import Cohere
from langchain.retrievers import  ContextualCompressionRetriever
from langchain.retrievers.document_compressors import CohereRerank

compressor = CohereRerank(model="rerank-english-v2.0", top_n=3)
compression_retriever = ContextualCompressionRetriever(
    base_compressor=compressor, base_retriever=retriever
)

compressed_docs = compression_retriever.get_relevant_documents(question)
compressed_docs

/Users/sakunaharinda/Documents/Repositories/ragatouille/venv/lib/python3.12/site-packages/langchain_core/_api/deprecation.py:119: LangChainDeprecationWarning: The class `CohereRerank` was deprecated in LangChain 0.0.30 and will be removed in 0.2.0. An updated version of the class exists in the langchain-cohere package and should be used instead. To use it run `pip install -U langchain-cohere` and import as `from langchain_cohere import CohereRerank`.
  warn_deprecated(

/Users/sakunaharinda/Documents/Repositories/ragatouille/venv/lib/python3.12/site-packages/langchain_core/_api/deprecation.py:119: LangChainDeprecationWarning: The method `BaseRetriever.get_relevant_documents` was deprecated in langchain-core 0.1.46 and will be removed in 0.3.0. Use invoke instead.
  warn_deprecated(

[Document(page_content='Quantization to reduce the average memory footprint by quantizing the quantization\nconstants, and (c) Paged Optimizers to manage memory spikes. We use QLORA\nto finetune more than 1,000 models, providing a detailed analysis of instruction\nfollowing and chatbot performance across 8 instruction datasets, multiple model\ntypes (LLaMA, T5), and model scales that would be infeasible to run with regular\nfinetuning (e.g. 33B and 65B parameter models). Our results show that QLoRA', metadata={'page': 0, 'source': 'data/QLoRA.pdf', 'relevance_score': 0.998259}),
 Document(page_content='Quantization to reduce the average memory footprint by quantizing the quantization\nconstants, and (c) Paged Optimizers to manage memory spikes. We use QLORA\nto finetune more than 1,000 models, providing a detailed analysis of instruction\nfollowing and chatbot performance across 8 instruction datasets, multiple model\ntypes (LLaMA, T5), and model scales that would be infeasible to run with regular\nfinetuning (e.g. 33B and 65B parameter models). Our results show that QLoRA', metadata={'page': 0, 'source': 'data/QLoRA.pdf', 'relevance_score': 0.998259}),
 Document(page_content='Quantization to reduce the average memory footprint by quantizing the quantization\nconstants, and (c) Paged Optimizers to manage memory spikes. We use QLORA\nto finetune more than 1,000 models, providing a detailed analysis of instruction\nfollowing and chatbot performance across 8 instruction datasets, multiple model\ntypes (LLaMA, T5), and model scales that would be infeasible to run with regular\nfinetuning (e.g. 33B and 65B parameter models). Our results show that QLoRA', metadata={'page': 0, 'source': 'data/QLoRA.pdf', 'relevance_score': 0.998259})]

prompt = ChatPromptTemplate.from_template(
    """
    Asnwer the given question using the provided context.\n\nContext: {context}\n\nQuestion: {question}
    """
)


cohere_with_rag_chain = (
    {'context': compression_retriever, 'question': RunnablePassthrough()}
    | prompt
    | ChatOpenAI(model='gpt-4', temperature=0)
    | StrOutputParser()
)

cohere_with_rag_chain.invoke(question)

'The context does not provide a specific definition or explanation of what QLoRA is.'

The LangSmith trace for the Cohere reranking will look like this.
